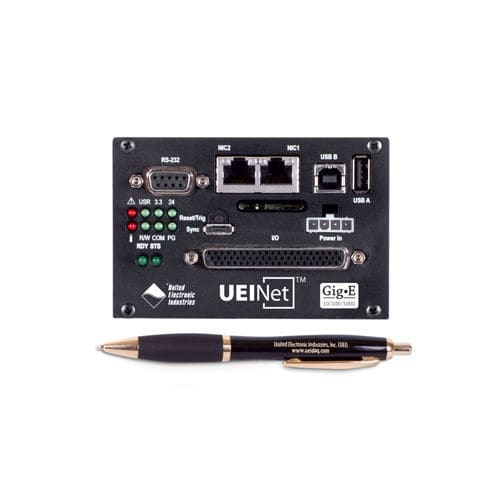

Benchtop chassis UEINet-02

compactindustrialrugged

The UEINet chassis provides an ultra-compact, Ethernet based I/O module suitable for a wide variety of distributed data acquisition, control, and SCADA applications. Based on UEI's popular PowerDNA Cube architecture, the new series is designed for applications requiring distributed I/O with a very small footprint. The UEINet chassis is an extremely rugged, Gigabit Ethernet-based I/O interface. The wide variety of I/O boards allows you to configure one or more Cubes to match the specific I/O requirements of your application. The PowerDNA Cube is ideally suited for a wide variety of industrial, aerospace, and laboratory data acquisition and control applications. UEINet chassis are 2.7" x 4.1" x 4", and are packed with power and flexibility. Each UEINet module consists of two primary subsections: a Core Module and an I/O board. The "standard" UEINet is designed to run as a slave I/O unit controlled directly by a host PC. The UEINet PAC UPG option allows the unit to run as a stand-alone device running an application you write in either Linux or VxWorks operating systems. Simulink users can use the UEINet SIM UPG option to enable the ability to build applications in Simulink. These Simulink modules may be run on a host PC, stand-alone on the UEINet, or in a SCADA mode where a stand-alone application runs, but can be tuned by the host PC. Finally, the UEINet Mod UPG allows the UEINet to run as a MODBUS TCP node and the UEINet OPC-UA UPG allows the UEINet to run as an OPC-UA Server.
