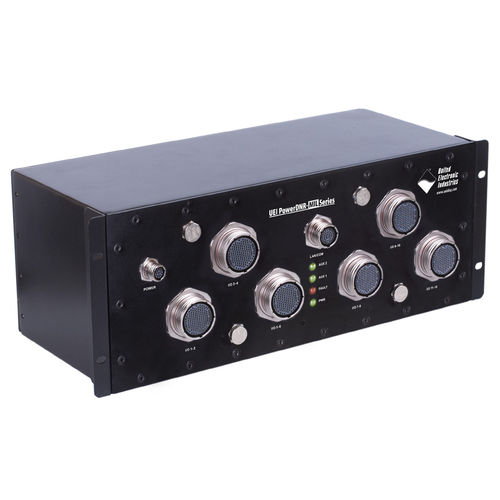

Rack-mount chassis DNR-MIL-02

compact12 slotsrugged

The DNR-MIL is the latest deployment of UEI's popular RACKtangle architecture. Though the original RACKtangles are quite rugged, the DNR-MIL series takes ruggedness to the extreme. Designed for use in the toughest environments, the new RACKtangle is an ideal solution for military and aerospace deployments. The form factor is also ideal for a huge assortment of commercial applications including use on oil drilling platforms and refineries, heavy machinery, outdoor test stands and any other I/O application that will be exposed to the elements. All connectivity is through ROHS compliant 38999 connectors. Electronically, the DNR-MIL RACKtangle is identical to the standard DNR series RACKtangle except for the added hold-up and protection circuitry added to the power supply inputs. (This power supply conditioning is required in order to meet MIL-STD-1275.) This means the DNR-MIL uses our standard DNR-series board (e.g. DNR-AI-217 or DNR-1553-553). With over 50 unique I/O boards and 12 slots available there's sure to be a configuration perfectly matching your application. The new RACKtangle is designed to meet the most commonly required elements of MIL-STD-461 and -810 and is sealed to at least IP66/NEMA6 standards. All this is housed in a compact 17.5" x 8.125" x 7" chassis, weighing less than 22 pounds and typically consuming less than 40 Watts. In addition, no rotary cooling fans are used in the design which maximizes MTBF and mechanical reliability. All internal printed circuit boards are conformal coated to ensure the highest reliability. The RACKtangle chassis is available in four different deployment options. In PowerDNA, UEIPAC, UEISIM and UEIMODBUS.
