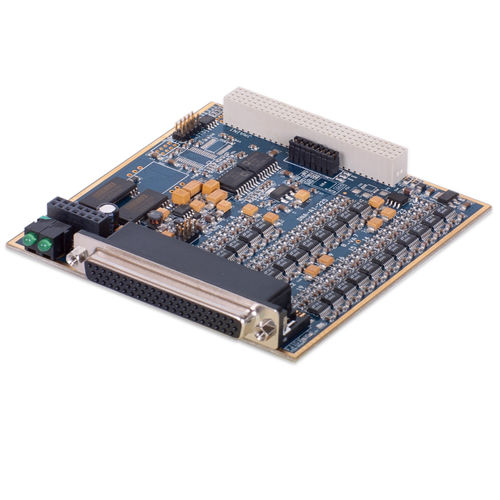

Analog data acquisition card DNx-AI-225-801 series

25-channel, 24-bit, 1 kS/s per channel, analog input board, 150 Hz low pass filter Features 25-channel, 24-bit, 1 kS/s per channel, simultaneous sampling analog input, data acquisition board 150 Hz low pass filter 25 channels 24-bit resolution One channel can be used for CJC 5 S/s to 1000 S/s sampling rates Differential inputs of ±1.25V Direct connection to thermocouples (using DNA-STP-AI-U terminal panel) Ideal for seismic testing, high-precision weight and temperature measurement 25-channel, 24-bit analog input data acquisition board (layer) for high-precision measurement. The DNA/DNR-AI-225 interfaces directly to thermocouples with a resolution of 0.1° C or better for all thermocouple types across their full temperature range. The layer’s unique calibration scheme eliminates initial offset and gain errors across all converters ensuring errors stay within microvolts across the operating range of the product. The software included will perform all required TC linearization and CJC compensation and return data in °C or °F if desired.
