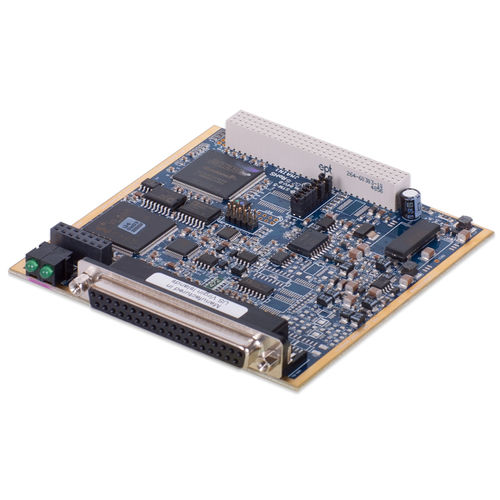

Analog input card DNx-AI-208v

8-channelfor strain gauges

8-channel, 18-bit, 1 kS/s per channel, strain gage input board DNx-AI-208, DNA-AI-208, DNR-AI-208, DNF-AI-208 Features 8-channel, 18-bit, 1 kS/s per channel, strain gage analog input, data acquisition board 8 differential channels Maximum sampling rate of 8 kS/s per board, 1 kS/s per channel (total board sample rate limited to 8 kS/s) 18-bit resolution 2 wiring schemes (4- and 6-wire) Gains - 1,2,4,8,10,20,40,80,100,200,400,800 Overvoltage protection (-40V..+55V) Full-, Half- and Quarter-bridge configurations Software for onboard shunt calibration Per channel built-in averaging engine from 5Hz, 4096 samples to 1000 Hz , 4 samples The DNx-AI-208 is an 8 differential channel, 18-bit strain gage analog input data acquisition board (layer) for PowerDNA - distributed I/O system. The DNx-AI-208 board designed for direct measurement of full-bridge strain gauges, load cells, force sensors, torque sensors as well as any other full-bridge circuitry-based sensors. The layer's 8 kS/s maximum sample rate is divided among the channels being sampled. For example, you may sample a single channel at 8 kS/s, two channels at 4 kS/S each, 4 channels at 2 kS/s each, etc.8 differential channel, 18-bit strain gage analog input data acquisition board (layer) for PowerDNA - distributed I/O system.
