Function generator DNx-AO-364 series

arbitrary waveformprogrammablecard format

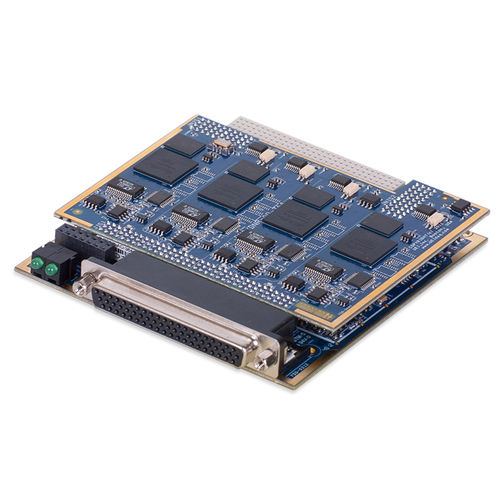

The DNx-AO-364 are 4-channel function generator/Arbitrary Waveform Generator (AWFG) boards for use in UEI's popular Cube/RACKtangle chassis, respectively. Standard sine, square and triangle waveforms at up to 150 kHz are provided or the user may create a custom waveform by taking advantage of the boards' AWFG capabilities. Each channel's output may be set independently of the others or may be slaved to any other channel taking advantage of the programmable phase shift functionality. The DNx-AO-364 provides high resolution in both its frequency output as well as voltage output settings. Output Frequency may be set from 1 mHz to 150 kHz with 0.25 Hz resolution and ±1.0 Hz overall accuracy. Output voltages may be set from 0 to 8.45 Vrms with 16-bit resolution. Output DC offset may be set between ±12.0 VDC, also with 16-bit resolution. Note that total output voltage selected including output voltage and offset may not exceed ±12.0 VDC. The outputs may be enabled or disabled under software control with output impedances of 150 kOhm respectively. Features 4-Channel Function generator/AWFG interface DNA-AO-364 for use with Cube I/O chassis (DNR version shown in photo) DNR-AO-364 for use with RACKtangle™ I/O chassis 4 independently configurable channels Sine, Square, Triangle or AWFG output 1 mHz to 150kHz outputs 0.25 Hz output resolution Software selectable phase shifts between channels Real-time frequency slew/sweep
