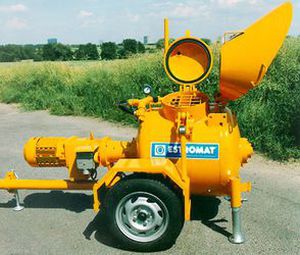

Electric screed mixing and coveying machine ESTROMAT 260 E

Mixing and conveying of earthmoist cement-sand-screed, concrete, gravel up to 8 mm (5/16 Standard delivery : Delivery hopper trailer 750 kg(StVZO) backlights standard vessel outlet ID50/SK50 or ID65mm/KKV70 grease tool tool set Option. equipment: automa. central lubrication autom. waterdosage hydraul. skip hydraul. skid conveying hoses IDN65/KK70 or ID50/SK 50 conveying hoses ID65mm/KK70 or ID50mm/SK50 Remarks: required compressor from 2,5m³/ min, 7 bar Other versions: ESTROMAT 260E-7,5 kW similar to ESTROMAT 260E-5,5kW Technical Data Type: ESTROMAT 260 E-5,5 kW Type of machine: Pneum. pressure vessel mixing and conveying unit for screed, working pressure 8 bars Charge: By hand or optional by hydraulic skip and hydraulic scraper Drive / Type of drive: 400V / 50 Hz / 5,5 kW / Three phase gear motor Conveying output: up to 4m³ / h (140cft / h) Mixer vessel: 260 l volume, working volume 220 l Mixer: 4-blade horizontal compulsory mixer
