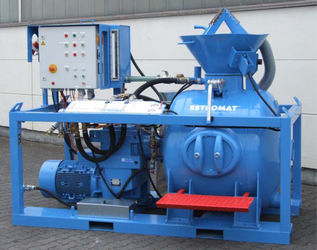

Electric screed mixing and coveying machine Estromat 850

The ESTROMAT 850 has been especially developed as pressure vessel machine for the processing of refractory materials for the supply of casting ladles, blast furnace troughs and runners etc. The big volume of approximately 850 l as against the so far used pressure vessels of 260 l as well as 600 l volume is very suitable for economical and reliable processing of pre-mixed refractory masses in Big-Bags of 1,5t. Special equipment Flexible non buckling hose line ID 80, ID 100 Blow back device with squeeze valve automatic central lubrication system Hose-outrigger manually adjustable or by motor Standard delivery : Pressure vessel machine frame electric controlbox air dosing armatures Option. equipment: automatical central lubrication automatical waterdosing blow-back device manuell or motor driven adjustable boom for conveying hose Technical Data Type: ESTROMAT 850 Type of machine: air pressure conveyor, (without compressor) Charge: Bagbags Drive / Type of drive: 400V/50Hz, threephase / Gearmotor 30kW Mixer vessel: Volume 850 l, working volume up to 650 l MIXER: Mixing vessel with built in compulsory mixer
