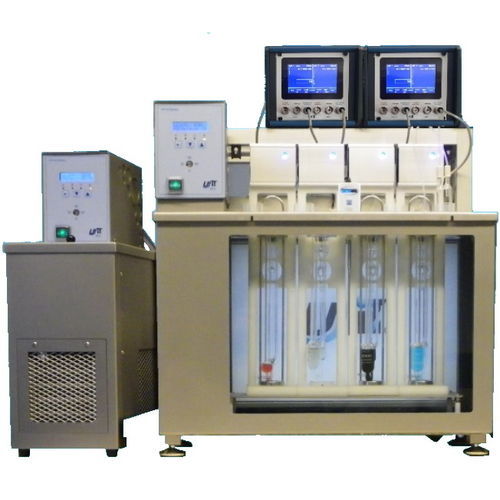

Kinematic viscosity measurement device UVS® Easy series

UV9 Easy is a measure device for determination the kinematic, relative and kinetic viscosity of polymeric compounds or lubricants with a viscometer. Calculation and documentation of the determined values is done via the touchpad / display : In combination with a viscometer the UVS can measure the flowtime till 9999 seconds with accuracy in 10 milliseconds and is compliant to • ASTM D445 • ISO 3105 • DIN 51562-1 ff • all valid norms concerning testing of polymers Minimum system: • viscosity measurement for one channel with connection to light barriers stand - Suction or Pressure mode Option: - Printer second measurement channel ( Suction or Pressure mode) or - rinsing or cleaning unit. with waste sensor head conductance sensor (TQ and alarm full automated :leaning up to solvents Highlights: - modern glass touchscreen - up to 2 channel measure device per unit - optional drain functionality - optional automated clean functionality - huge formula calculation base - non volatile result storage - multiple methods configuration - viscometer databas - user management - waste bottle guard (option)
