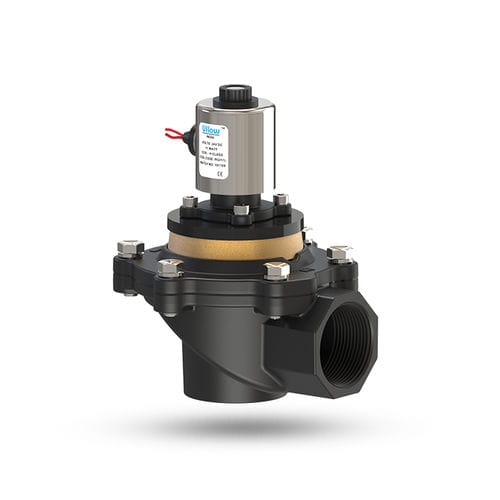

Pulse jet solenoid valve JAN series pilot-operated2-wayair
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Medium
- air
- Body
- screw-in, IP67, IP68, flameproof, lockable, brass, aluminum
- Other characteristics
- pulse, pulse jet, control
- DN
1 in, 1.5 in, 2 in, 2.5 in
- Voltage
12 V, 24 V, 110 V, 230 V
- Temperature
Max.: 90 °C
(194 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 8.5 bar
(123.3 psi)Min.: 0.5 bar
(7.3 psi)
Description
Pulse Jet Angle Type Dust Collector Valve
Valve Information
Port:Refer below technical data sheet (Available BSP, NPT & Dresser Nut)
End Connection:Screwed
Body Material: - Aluminum Die Cast
Diapharagm: - Nitrile (NBR)
Main Features: - Internai Parts are in superior corrosion résistance Steel, (Equivalent to SS316L) Suitable for Air Pollution Control System, Bag Filter Machine
Optional Feature:90% Power saver series also availableOther Specification Data:Available on Request - Brass silencer to reduce extra noise
Coil Information
Coil Features:High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.Coil Housing:Epoxy square coil, metallic round enclosure, IP-67 Flameproof enclosure, IP-68 Weatherproof enclosure.
Note:Use of filter in the inlet port is recommended.
Catalogs
JAN series
3 Pages
