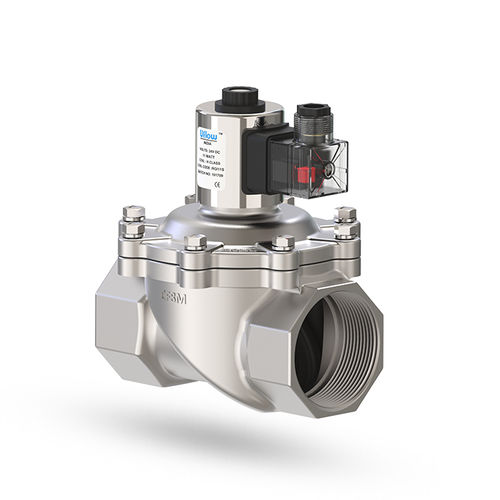

Diaphragm solenoid valve MCN seriespilot-operated2-waynormally open
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- normally open
- Medium
- water, air, for steam, oil, for food
- Body
- threaded, flange, flameproof, lockable, IP67, brass
- Other characteristics
- diaphragm
- DN
Max.: 2 in
Min.: 0.5 in
- Voltage
12 V, 24 V, 110 V, 230 V
- Temperature
Max.: 180 °C
(356 °F)Min.: -30 °C
(-22 °F)- Pressure
Max.: 7 bar
(101.5 psi)Min.: 0 bar
(0 psi)
Description
Semi Lift Diaphragm Operated Solenoid Valve Normally Open
Valve Information
> Port: - Refer below technical data sheet (Available BSP / NPT)
> End Connection: - Screwed / Flange
> Body Material: - SS ASTM A351 Grade CF8 / CF8M, Forged Brass
> Diapharagm: - Nitrile (NBR), EPDM, Viton (FKM), PTFE
> Media: - Air, Water, Chemical, Gas, Oil, Steam, LPG.
> Main Features: - Internai Parts are in superior corrosion résistance Steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment.
Optional Feature: - 90% Power saver sériés also available, Water hammering reducer also available to avoid water hammer forces. Spécial high flow rate sériés available on request at low pressure or gravity pressure application.
Other Specification Data:Available on Request.
Coil Information
Coil Features:High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position, or freely movable in between as require.Coil Housing:Epoxy square coil, Metallic round enclosure, IP-67 Flameproof enclosure, IP-68 Weatherproof enclosure.
