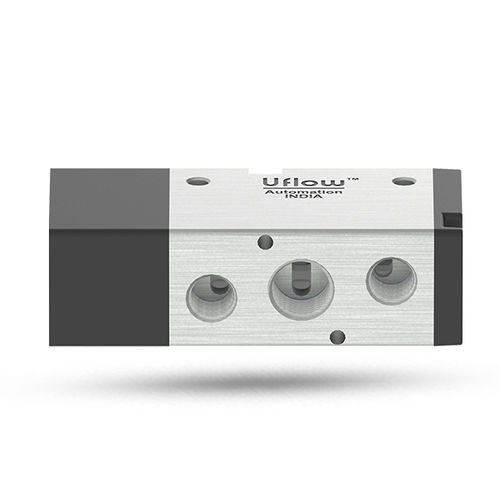

Spool pneumatic directional control valve AFA1BN04V0pneumaticpilot5/2-way
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- pneumatic, pilot
- Ports/positions
- 5/2-way
- Other characteristics
- aluminium, compact, brass, cartridge
- Operating pressure
Max.: 10 bar
(145 psi)Min.: 2 bar
(29 psi)- Flow rate
1,200 l/min, 3,500 l/min
(317 us gal/min, 925 us gal/min)
Description
Type - 5X2
Design - Spool with Cartridge Type
Port Size - In/Out - 1/4" BSP & Exhaust/Pilot Port l/8" BSP
Media - Compressed Air, Filtered & Lubricated
Ambient/Medium Température - 5°- 60° C
Materials of Construction - Aluminium, Nitrile, Brass, Polymer
Cartridge Type design for Long lifeCompact designLubrication not essentialThe head can rotate 18020 Lacs Cycle testedSingle and Manifold Mounting
* *
Features
Cartridge Type design for Long life - & Compact design - $ Lubrication not essential
The head can rotate 180 - & 20 Lacs Cycle tested - $ Single and Manifold Mounting
