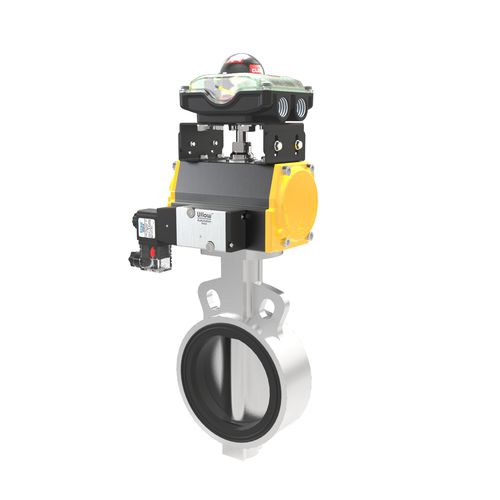

Butterfly valve RCEleverwith handwheelpneumatic
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever, with handwheel, pneumatic
- Body
- wafer, cast iron
- Other characteristics
- ISO, bidirectional, rising stem
- DN
Max.: 300 mm
(11.811 in)Min.: 40 mm
(1.575 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)
Description
Features
Bi-directional zero leakage butterfly valve.ISO Pad for mounting, Gear Operator /ActuatorExtremely small play between the stem and disc due to ‘Double D’ drive.Accurate dual stem sealing prevents leakage.Butterfly valve can be mounted between flanges as per ASME, BS-10.100% tested under Water and Pneumatic.360° disc rotation.Design Standard : ISO 5211, API 609, ASME B16.5 150#.Nominal Diameter : DN50 -DN250.Pressure Rang (bar) : PN10, PN16.ANSI B16.5 150#, BS10 TABLE E, TABLE F, TABLE H, Flange Accommodation.Face to Face Dimension : API 609 (CAT A).Operator mounting flange : As per ISO 5211.Operator : Hand Lever / Gear / Actuator.End connection : wafer end.Leakage Class : 100% tightness at full differential Pressure.
