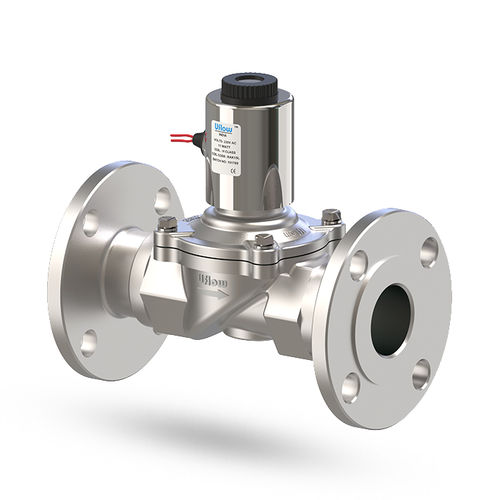

Pilot-operated solenoid valve MCN

2-wayNCNO

> Port: - Refer below technical data sheet (Available BSP / NPT) > End Connection: - Screwed / Flange > Body Material: - SS ASTM A351 Grade CF8 / CF8M, Forged Brass > Diapharagm: - Nitrile (NBR), EPDM, Viton (FKM), PTFE > Media: - Air, Water, Chemical, Gas, Oil, Steam, LPG. > Main Features: - Internai Parts are in superior corrosion résistance Steel, (Equivalent to SS316L) Suitable for Food Industries, Pharmaceuticals, Chemical application & Highly corrosive environment. > Power Consumption: - 7W, 8W, 8W / 17W, 10W, 11W > Optional Feature: - 90% Power saver sériés also available, Water hammering reducer also available to avoid water hammer forces. Spécial high flow rate sériés available on request at low pressure or gravity pressure application. > Other Spécification Data: - Available on Request. > Coil Features: - High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position, or freely movable in between as require. > Coil Housing: - Epoxy square coil, Metallic round enclosure, IP-67 Flameproof enclosure, IP-68 Weatherproof enclosure.
