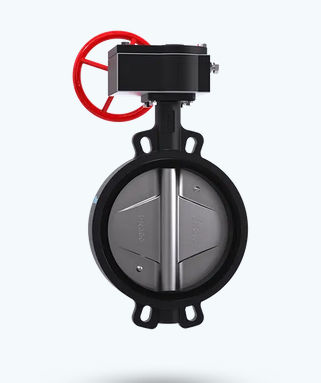

Butterfly valve with handwheelfor watermounting flange
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- with handwheel
- Media
- for water
- Body
- mounting flange
- Applications
- gearbox
- Other characteristics
- ISO, standard, bidirectional
- DN
Max.: 300 mm
(11.811 in)Min.: 40 mm
(1.575 in)
Description
Bi-directional zéro leakage butterfly valve.
Accurate dual stem sealing prevents leakage.
Design Standard: ISO 5211, API 609, ASME B16.5 150#^
Operator : Hand Lever / Gear / Actuator
ISO Pad for mounting, Gear Operator / Actuator
The butterfly valve can be mounted between flanges as per ASME.
Face-to-Face Dimension: API 609 (CAT A).
Leakage Class: 100% tightness at full differential Pressure.
Extremely small play between the stem and dise due to the 'Double D'drive.
100% Tested With Pneumatic And Fluid (Water) Media.
Operator mounting flange: As per ISO 5211.
