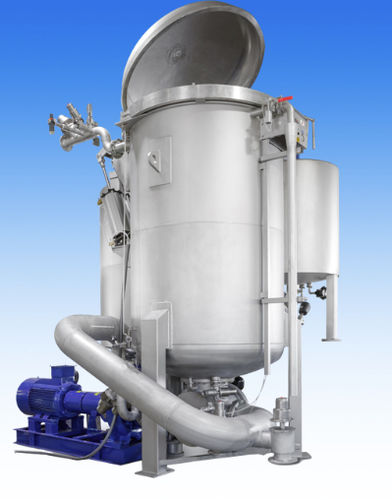

Textile dyeing machine GSE

strip fabric

VERTICAL YARN DYEING MACHINES MOD GSE ENERGY SAVING The consumption of water, chemicals, electrical energy, thermal energy and the wasted water are important cost factors in every dye house. With this machine all these factors are dramatically reduced, measured and control- led. Right-first-time in dyeing is now assured by lower ∆E differences inside-outside the packages, while savings of electric energy, water, chemicals, steam and compressed air will bring extremely fast payback times over the initial investment cost. New GSE sizes are from 12 kg to 1200 kg. This machine with this particular pump and inversion group allows to treat polyester textured high density till 0,5 Kg/l as well as very soft material like silk 0,3 kg/l density in order to process every kind of material you can have in your dye house. In particular can dye bobbin 1.8 kg cotton, 2,4 kg acrylic, polyester 4 kg or 10 kg tops or muffs, tow, flock or beams Main advantages are: Possibility to dye with liquor ratio from 1.3.8 using in to out single circulation with material not fully covered. Reduce consumption of chemicals, dyes, water and steam due to low liquor ratio faci- lity. Reduce power consumption of main pump because pipes are designed to avoid losses of pressure so that main pump is exploited in the best way. High efficiency motor and in verter reduces power consumption as well. Possibility to dye also in traditional way: air pad, material fully covered and flow circula- tion in to out and out to in directions. Characteristics The principal features of this machine are the minimization of pump pressure losses and volume minimization.
