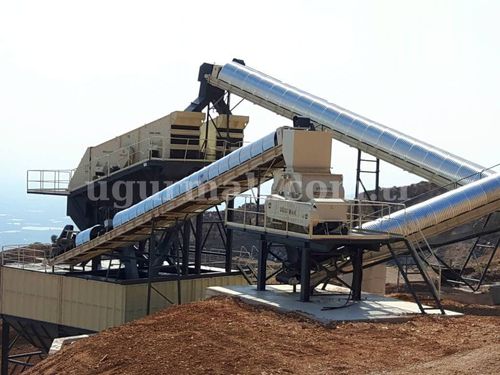

Impact crusher UTK series

stationaryhigh-capacitysecondary

UĞURMAK UTK Series Tertiary Impact Crushers are preferred at crushing for medium and low hardness, mostly at tertiary level and can be used as secondary crushers depending on the hardness and feeding size. It produces very fine aggregate which is required for asphalt and concrete production. The rotor can rotate in both directions. The direction of rotation is bi-directional, allowing product to be received in two different gradations without setting changes. In addition, it provides longer life since there will be bi-directional wear on rotor hammers. According to the design of the facility, they can be manufactured as mobile, with fixed steel legs, with fixed concrete legs, with fixed skid chassis. From the feeding to the exit, the distance between the pendulum liners and the rotor tracks is getting narrower. It performs linear size reduction instead of gradual crushing in other impact crushers. In this way, UTK performs the crushing process by applying impact to the material close to the feeding and crushing with the grinding method towards the exit. This ensures that the amount of unpreferred size product is almost nonexistent. Body The crusher body with welded design provides long life thanks to its high strength. On both sides, there are body caps for accessing the whole pendulum and rotor. Palette Reverse-Side can be used. It shows high resistance to breakage. Self-centered and assembled. Firmly mounted on the rotor body with special wedges. It is fixed with pallet holders against lateral movements. In this way, it keeps its place in all cases.
