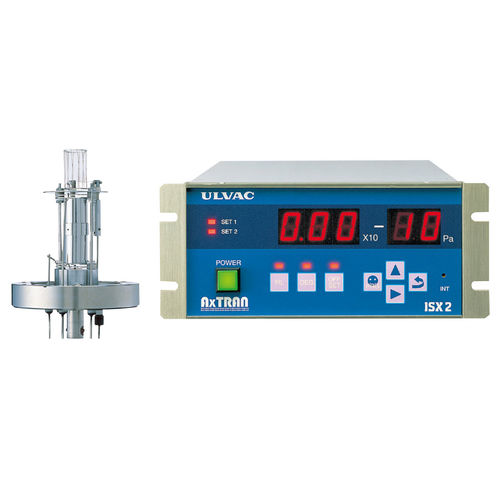

Ionization vacuum gauge AXTRAN

hot cathode

EXTREME HIGH VACUUM GAUGE AXTRAN AxTRAN is a hot cathode type ionization vacuum gauge with a Bessel Box type energy filter installed between the ion source and the ion collector. This design provides a measurement resolution of 5×10-11Pa (3.75×10-13Torr, 5×10-13mbar) by reducing the residual current due to soft X-rays and electron stimulated desorption (ESD) ions.Measures Ultra High Vacuum to Extreme High Vacuum Measures pressure of 5×10-11Pa (3.75×10-13Torr, 5×10-13mbar) Bessel Box Type Energy Filter Reduce soft x-ray and residual current such as ESD ion Measures a Wide Pressure Range Measure a wide pressure range from 1×10-2 to 5×10-11Pa (7.5×10-5 to 3.75×10-13 torr, 1×10-4 to 5×10-13 mbar) Measured Value Output Signal Pressure is 0 to 10V Log output (psudo-log output) / 1V linear output within each digit Control Output Signal 2 set points output Digital Output and Serial Communication BCD/RS232C (option) For total pressure measurement of vacuum equipment such as a high-energy accelerators. For pressure measurement of ultra high or extreme high vacuum equipment used in UHV or XHV research work.
