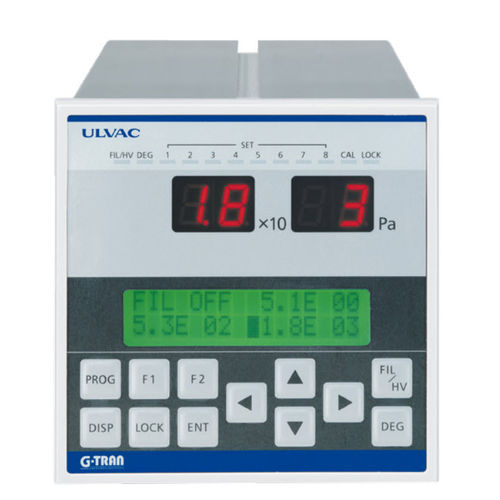

Alphanumeric display G-TRAN 4CH series

controlset point

G-TRAN SERIES 4CH DISPLAY UNIT IM1R1, IM2R1 4 channel display unit enables you to connect up to 4 sensor units, multiple measurements and display measured pressure. 8 set points output and I/O · communication control are equipped as standard features. It is possible to measure wide range pressure by the interlock function of the atmospheric pirani gauge or pirani gauge and ionization gauge.4 Channel Display Maximum four sensor units/ box units can be connected (Ionization gauge and cold cathode gauge are connectable only to CH1) 4 Channel Display is Possible 4 channel simultaneous measurement function Used as Combination Gauge Possible to establish an interlock between the measurement of an ion gauge on CH1 and a pirani gauge on CH2 Control Output Signal Maximum 8 setpoint outputs from 4 gauges can be allocated (Channel allocation of each set point can be set from CH1 to 4.) Power Supply Voltage Either DC24V or AC100V can be used as input power source Serial Communication Type RS232C communication is standard Vacuum Output Signal Pressure is 0 to 10V LOG output/4CH Display Unit LED / LCD displays are large, bright and easily to read DIN Standards Compatible with DIN standards (compact size of 96 x 96 mm)
