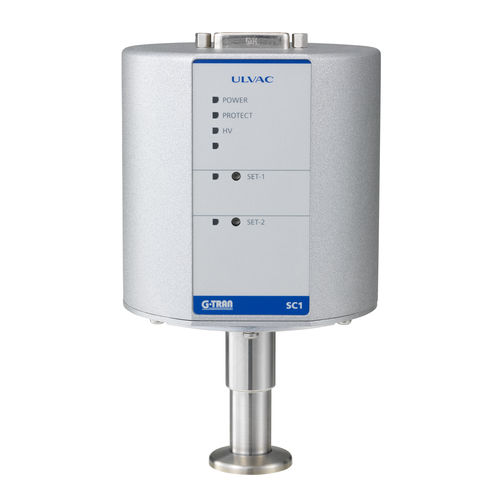

Cold cathode vacuum gauge G-TRAN SC1 series

digital

COLD CATHODE GAUGE SENSOR UNIT G-TRAN SERIES SC1 G-TRAN series SC1 is a magnetron type cold cathode vacuum gauge. Since no ilament is used, extended life between gauge replacements is assured. Maintenance is expected. Ease of maintenance reduces the cost of ownership.Transducer specification When the pressure display is not required, the following advantages can be achieved: Vacuum gauge cost is reduced because the display has been eliminated Smaller size frees-up control panel space Wiring is reduced Maintenance Maintenance is greatly simplyied Filament is eliminated No damage from exposure to atmospheric pressure Control output signal 2 setpoint output Output signal Pressure reading is a 0 to 10V Log output (non-linear output) Power supply voltage Operated by DC24V SPECIAL FEATURES / FURTHER APPLICATIONS Process control in the pressure range of precision vacuum equipment used for semiconductor, optics and electronic parts manufacturing Process control in low vacuum range for industrial equipment such as furnaces Process control in the pressure range for vacuum systems with multiple process chambers, such as in-line sputtering and single wafer processing equipment
