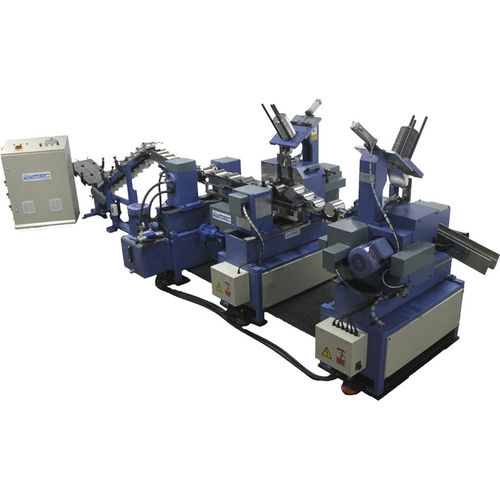

Automatic assembly line MAC/1800

semi-automatichorizontalfor cans

Fully automatic horizontal can assembly line is developed for producing paint and food cans that can be worked as compatible with automatic and semi-automatic welding machines. This line consists of infeed conveyor, automatic round flanging unit and automatic lower and upper seaming units with lid feeder. It works automatically with horizontal can moving system. Optionally, beading unit can be added to the machine for food cans. Can be produced one side open cans Seaming of end, lid and ring PLC and touch display control system Practical tool changing for different diameters Practical height adjustment with adjustment wheel and ruler All pneumatic system is FESTO and all electrical components are SIEMENS Capacity - 50 cans/minute Body Diameter Range - 63 - 175 mm Body Height Range - 100 - 300 mm Sheet Thickness - 0.2 - 0.4 mm Operation Air Pressure - 4 Bar Motor Power - 8 kW Supply Voltage - 220/380 V Average Machine Weight - 2000 Kg Machine Dimension - 3000 x 1000 x 2000 mm
