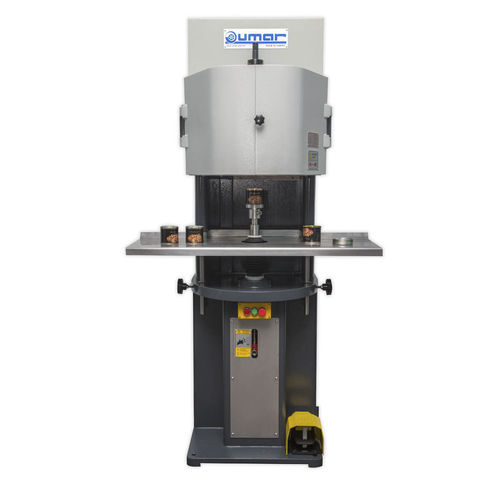

Automatic can seaming machine MAC/230

Mechanic-pneumatic machine is designed for the purpose of bottom and top seaming operation of the round body after flanging operation. Place the body, with the end on it, on the bottom mould and depress the electrical foot pedal. The machine will automatically clamp, seam and release the body. It is suitable to seam tin can, aluminum, EOE and Peel-Off covers. During operation can body is stationary so the machine is suitable for filled can seaming Steel construction frame Practical diameter and height adjustment Pneumatic can lifting unit Central lubrication Electrically controlled foot pedal Command voltage 24 VDC MAC/230-KK Partial Stainless Steel Round Seaming Machine MAC/230-TK Fully Stainless Steel Round Seaming Machine MAC/230-FK Filter Seaming Machine Capacity - 30 cans/minute Can Diameter - 60 - 230 mm Can Height (adjustable) - 25 - 300 mm Sheet Thickness - 0.14 - 1.2 mm Air Consumption - 0.8 lt/operation Total Power - 1.1 kW Supply Voltage - 220/380 V 50 Hz Average Machine Weight - 550 Kg Machine Dimension - 1000 x 900 x 1750 mm
