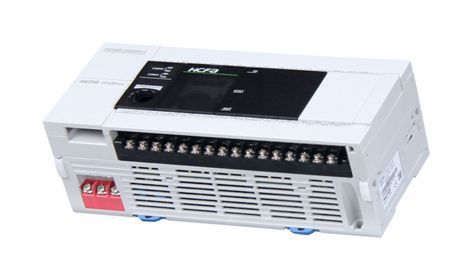

Compact PLC HCA8P

with integrated I/ONPN outputPNP outputs

Controllable I/O：48-256points；Main Unit I/O：48/64/80points； More reliable design：More reliable built-in power supply, dielectric withstand voltage improved, more reliable thermal design, new vibration resistance connector, greater transistor output 200V/ 1.5A, 485 communication insulation and EFT 4KV, PCBA coating processing; More user friendly：NPN&PNP input, newly-added reset switch, support downloading in power off state； Modular design：Common CPU and power board design, support right-side extension blocks, newly-added left-side extension block, support Ethernet and analog block； Safety design：Independent power supply (red terminal input) to prevent input point burn out caused by electric-shock and incorrect wiring, three segment security encryption function； High performance：Newly-upgraded dual-core structure, 50ns basic instruction, Bus processing speed improved by 10 times>A8, built-in 64K memory, 8-ch 200K high-speed input + 4-ch 200K high-speed output, built-in 3 communication ports and newly-added EtherCAT block；
