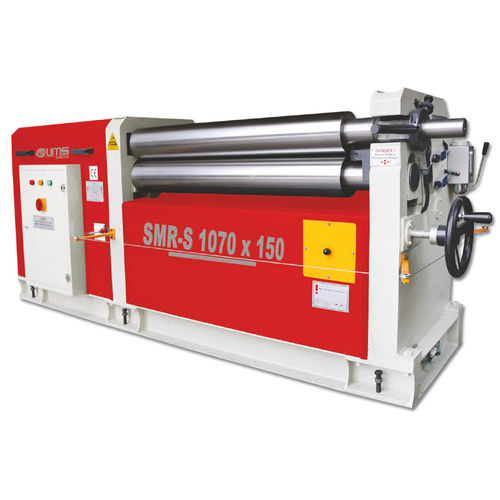

Electric bending machine SMR - S seriessheet metal3 drive rollersdigital
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Product handled
- sheet metal
- Number of rollers
- 3 drive rollers
- Control
- digital
- Bending capacity
Max.: 10 mm
(0.39 in)Min.: 4 mm
(0.16 in)- Bending length
2,570 mm
(101 in)- Roller diameter
Max.: 220 mm
(9 in)Min.: 130 mm
(5 in)- Overall length
Max.: 4,950 mm
(195 in)Min.: 2,550 mm
(100 in)- Total height
1,020 mm, 1,260 mm, 1,380 mm
(40 in, 50 in, 54 in)- Weight
Max.: 5,870 kg
(12,941 lb)Min.: 1,150 kg
(2,535 lb)
Description
Measuring values for bending capacity are given according to the strength of the sheet, 260N / mm2 yield limit. Our UMS-S models are the most preferred machines in the metalworking industry for light and medium jobs with their welded strong body, electric motor on the top and bottom rolls.
* Highly equipped shafts made of SAE1050 (CK-45) certified steel, * Lower and upper shafts driven by gear mechanism with chain and belt driven helical type reducer, * Machine body ST-52 steel construction, * Rear roll motor, * Manual opening Top roll, * Top roll support system, * Central lubrication system, * Mobile electric control panel, * Compliance with CE norms, * User manual
* Adjustable, stepless speed setting, * Digital display for the rear roll,
« Movement of the lower roll with an electric motor, * Grinded and Hardened balls, * Extended shaft ends for mounting profile and pipe bending balls, * Profile rolls, * Upper crane support (Elevator )
