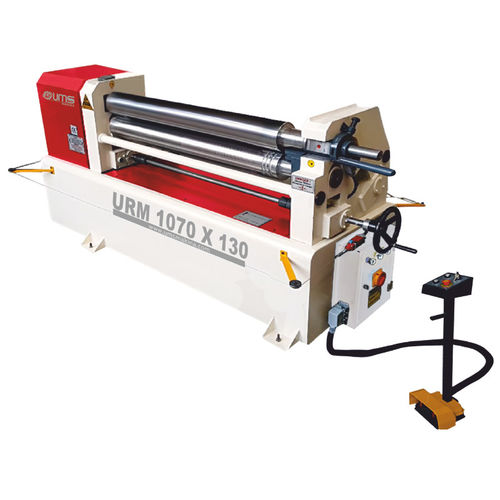

Motorized bending machine URM series
sheet metal3 drive rollersdigital

Motorized bending machine - URM series - UMS MAKİNA - sheet metal / 3 drive rollers / digital
Motorized bending machine - URM series - UMS MAKİNA - sheet metal / 3 drive rollers / digital
Motorized bending machine - URM series - UMS MAKİNA - sheet metal / 3 drive rollers / digital - image - 2
Motorized bending machine - URM series - UMS MAKİNA - sheet metal / 3 drive rollers / digital - image - 3
Add to favorites
Compare this product


Characteristics

Operation
motorized
Product handled
sheet metal
Number of rollers
3 drive rollers
Control
digital
Bending capacity

2 mm, 3 mm, 4 mm, 5 mm
(0.08 in, 0.12 in, 0.16 in, 0.2 in)

Bending length

1,070 mm, 1,270 mm, 2,070 mm, 2,570 mm
(42 in, 50 in, 81 in, 101 in)

Roller diameter

110 mm, 120 mm, 130 mm, 140 mm
(4 in, 5 in, 5 in, 6 in)

Overall length

2,250 mm, 2,500 mm, 2,725 mm, 3,230 mm, 3,725 mm
(89 in, 98 in, 107 in, 127 in, 147 in)

Overall width

800 mm
(31 in)

Total height

1,100 mm
(43 in)

Weight

Max.: 1,930 kg
(4,255 lb)

Min.: 1,000 kg
(2,205 lb)

Total power

2.2 kW
(3 hp)

Description

Upper and lower shafts driven by a single chain driven reducer and gear system, « Made of SAE1D50 certified steel, * High strength shafts, Main bodies made of steel casting, Movable foot pedal control panel, * Conical curling reel, * Manually opened top roll, * Top roll support system, Wire grooves at the end of the rolls, * Compliant with EU safety directives (CE), Up and down moving rear ball motor, Digital display for motorized rear roll, Up and down moving bottom roll engine, Digital display for motorized bottom roll, Hardened shafts
