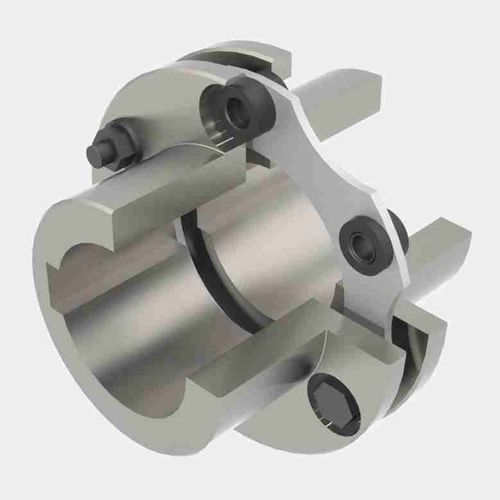

Flexible coupling KL

disctorsionally rigidshaft

The Lamaflex disc coupling is an all-steel torsionally rigid coupling ideal to connect pumps, compressors, electric motors and other type of machinery. This is a flexible disc style coupling used to link machine shafts and compensate little shaft misalignments while generating low restorative forces. The flexibility of these couplings is obtained from the flexing of thin metallic discs. The disc packs, composed of these individual thin plates held together by a socket and a ring, able to expand slightly when there is a misalignment, absorbing the vibrations and shock loads coming from the driver side. This coupling is available with two alternative configurations. The KL configuration, composed of two hubs and one-disc pack kit, and the FLS and KLS types, composed by two hubs, a spacer, and two-disc pack kits. Both configurations can accommodate axial and angular misalignments, but only the FLS and KLS alternatives (the spacer accommodate radial misalignment owing to have two flexible disc packs. The disc packs are manufactured using high grade stainless steel (AISI-301), ensuring high strength and high endurance to fatigue as well as resistance to most environmental conditions. Lamaflex disc couplings utilizes unitised disc packs with 4 or 6 bolting points designs. The higher bolting points in each disc pack, the larger the torque is able to transmit. However, smaller are the misalignments the coupling can accommodate. Features and benefits of disc couplings Zero maintenance: No routine maintenance or lubrication required No backlash: The torsionally stiff design ensures there is zero backlash, making ideal when constant speed is crucial
