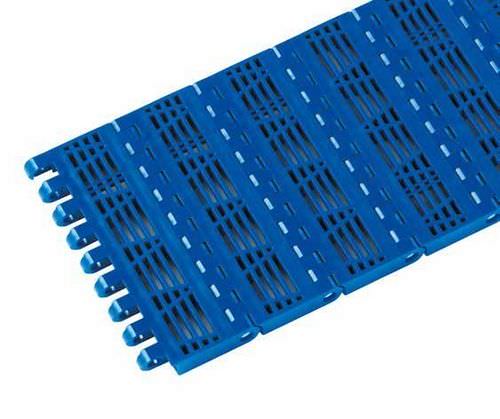

Modular conveyor belt uni OPB seriesplasticindustrialhigh-resistance
Add to favorites
Compare this product
Characteristics
- Type
- modular
- Material
- plastic
- Sector
- industrial
- Tolerance
- high-resistance
- Width
Min.: 151 mm
(5.94 in)Max.: 2,879 mm
(113.35 in)
Description
Straight running belt
Nominal pitch: 50.0 mm (1.97 in)
Surface type: Flat
Surface opening: 23%
Backflex radius: 75.0 mm (3.00 in)
Pin diameter: ø8 mm (1.97 in)
uni OPB 4V 23%
Plastic Modular Belt
Serie Type
*uni-chains recommends this travel direction.
However. travel in both directions is possible.
Catalogs
No catalogs are available for this product.
See all of uni-chains‘s catalogs
