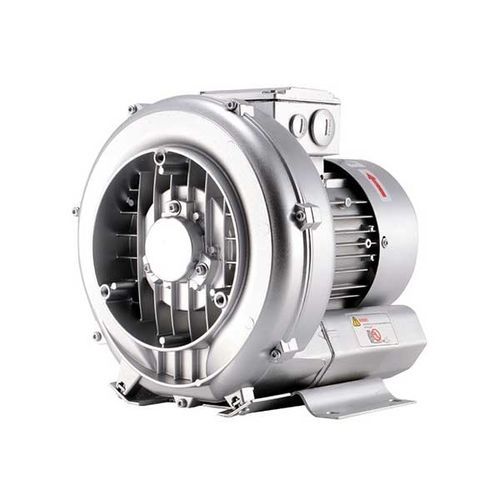

Air blower UC-RB750/3turbinethree-stageprocess
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- turbine
- Number of stages
- three-stage
- Applications
- conveying, drying, process
- Voltage / frequency
- 380 v / 50 Hz, 380 v / 60 Hz
- Other characteristics
- pneumatic, three-phase
- Flow
700 m³/h, 840 m³/h
(24,720.267 ft³/h, 29,664.32 ft³/h)- Operating pressure
Max.: 260 mbar
(3.771 psi)Min.: -270 mbar
(-3.916 psi)- Nominal power
7.5 kW, 8.6 kW
(10.197 hp, 11.693 hp)- Sound level
70 dB, 74 dB
- Weight
69 kg
(152.12 lb)- Length
449 mm
(17.68 in)- Height
461 mm
(18.1 in)
Description
Wide application, Low noise level, High air volume,Quiet and low vibration, oil free operation
Application:
Aeration of waste water systems or pond aeration,Vacuum cleaning system, Pneumatic conveying system,Galvanic technology, Drying process, Aquaculture
Catalogs
UNi-CROWN CAT 01.2021
8 Pages
