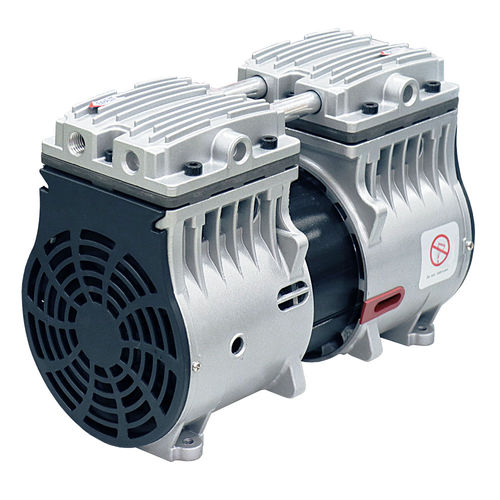

Oil-free vacuum pump UN-90Vrocking piston110VAC220VAC
Add to favorites
Compare this product
Characteristics
- Technology
- rocking piston
- Lubrication
- oil-free
- Supply voltage
- 110VAC, 220VAC
- Applications
- for medical applications, for packaging, for robots, for automation
- Other characteristics
- stainless steel, anti-corrosion, low-vibration
- Ultimate vacuum
906.59 mbar
(13.15 psi)- Flow rate
80 l/min, 90 l/min
(21.13 us gal/min, 23.78 us gal/min)- Power
250 W
(0.34 hp)- Length
250 mm
(10 in)- Width
128 mm
(5.04 in)- Height
184 mm
(7.24 in)- Weight
7.8 kg
(17.2 lb)
Description
UN-90V oilless vacuum pump is ideal for manufacturing and industrial markets applications, but should be considered for specific medical, laboratory, and Food & Beverage applications as well. Max Vacuum：680mmHg Max Flow：90LPM
Feature：
Oil-less operation, Non-lubricated piston and cylinder (Clean air stream, less maintenance), Easily replaced piston seal, Balanced for smooth, low vibration operation, Light weight die-cast aluminum components, Permanently lubricated bearings, Stainless steel valves, Twin fans provide cooling air through and around motor and cylinders, All wetted aluminum parts treated for corrosion protection from moisture, Thermally protected permanent split capacitor AC motors, One Year Warranty Provided
Application：
Semiconductor automation equipment, Vacuum packaing, spin coater, Labeling machine, Robotic arms.
