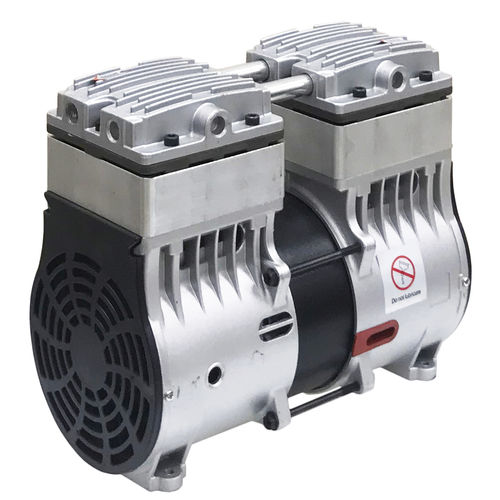

Oil-free vacuum pump UN-200Vrocking piston110VAC220VAC
Add to favorites
Compare this product
Characteristics
- Technology
- rocking piston
- Lubrication
- oil-free
- Supply voltage
- 110VAC, 220VAC
- Number of stages
- single-stage
- Applications
- for packaging, laser
- Ultimate vacuum
906.59 mbar
(13.15 psi)- Flow rate
160 l/min, 200 l/min
(42.27 us gal/min, 52.83 us gal/min)- Power
500 W
(0.68 hp)- Length
250 mm
(10 in)- Width
128 mm
(5.04 in)- Height
203 mm
(7.99 in)- Weight
9.2 kg
(20.28 lb)
Description
UN-200V oilless vacuum pump is ideal for manufacturing and industrial markets applications, but should be considered for specific medical, laboratory, and Food & Beverage applications as well. Max Vacuum：680mmHg Max Flow：200LPM
Feature：
RoHS Certification, Oil-less,Non-lubricated cup and cylinder,Long-life cup design, Stainless-steel valves,Thin wall cylinder for good heat transfer
Application：
Electronic & Semiconductor equipment, Diode test machine, Vacuum packing machine, Laser processing machine, Laminator/LED test machine, Robotic arms, Milker Machine, Fitting/packaging machine, Medical/Dental offices, Laboratory and Workshop Applications
Catalogs
UN-200V
1 Pages
