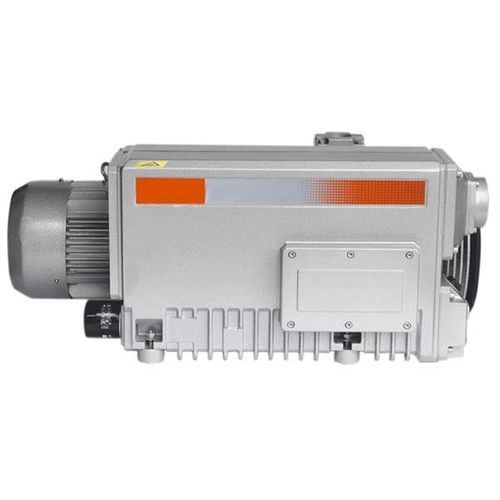

Rotary vane vacuum pump RV-160
lubricated220VAC380VAC

Rotary vane vacuum pump - RV-160 - UNi-CROWN CO., LTD. - lubricated / 220VAC / 380VAC
Rotary vane vacuum pump - RV-160 - UNi-CROWN CO., LTD. - lubricated / 220VAC / 380VAC
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
lubricated
Supply voltage
220VAC, 380VAC
Number of stages
single-stage
Ultimate vacuum

0.5 mbar
(0.01 psi)

Flow rate

160 m³/h, 192 m³/h
(5,650.35 ft³/h, 6,780.42 ft³/h)

Power

4 kW
(5.44 hp)

Length

805 mm
(32 in)

Width

520 mm
(20.47 in)

Height

410 mm
(16.14 in)

Noise level

75 dB

Weight

15.2 kg
(33.51 lb)

Description

Vacuum pumps for ac│AC vacuum pump│RV-160 Feature: Reliable operation, Easy to service,Environmentally safe Application: Vacuum packaging, Food technology,Bottling and filling machines, Plastics industry,Pneumatic conveying, Dust extraction systems,Packaging industry, Woodworking industry
