Profiled seal

graphitePTFEflexible

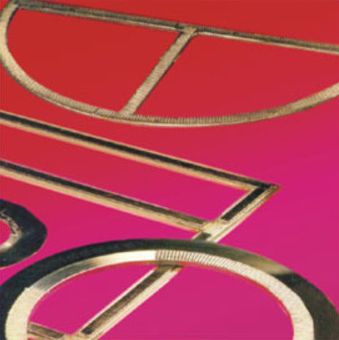

Kammprofile gaskets are recognized as a problem solver for heat exchangers, large vessels, and equipment that experience excessive movement due to thermal expansion. Kammprofile gaskets consist of a sealing core metal with or without guide ring. The sealing core is a solid metal gasket with concentric serrations on both sealing surfaces and faced with soft material such as flexible graphite, EPTFE configuration depending on operating conditions. It is the preferred design when needing improved performance at low seating stresses. Range available: 15 NB to 600 NB to suit ASME/ANSI B16.5 150# to 2500# 10DN to 1400DN to suit DIN2697 PN10 to PN400. Non Standard as per customers requirement i.e. 10mm to 3000mm. Heat Exchanger application with all type of pass partition bar configuration Available in MOC Metal Core: CS/SS304/SS316/SSS316L/SS321/SS347. Soft facing Material : Graphite/CAF/PTFE ( Exotic material also available on request )
