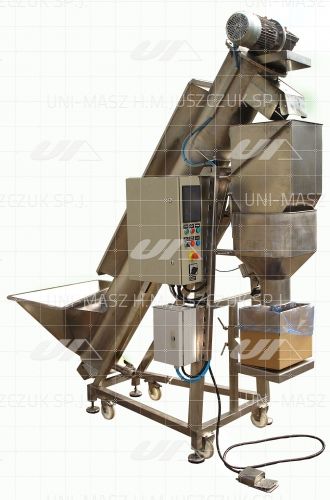

Weigher for the food industry

automatic

Unit is used to half automatic weighing frozen fruits and vegetables in bags and cartons. • Passing product to indirect weighing basket on screw conveyor • Weighed product…frozen fruits, vegetable cubes Specially shaped flood from the conveyor makes possible to the rough weighing • Indirect weighing basket with the closing system pneumatically controlled • Manually installed sack under the flooding basket with pneumatic blockade. • Easy to maintain cleanliness. • Easy communication using touch screen. • Intelligent control software which makes possible cooperation with other external units. ( robot to put on sacks, transporters to take out the product, sack sewer) • Measurement range …………….…………….…….…….……..30 kg. • Dozing precision ……….….…….………...……..……….+/- 40 gram • Portion weight …………………………….…….…….…( 10 - 25 ) kg • Capacity …………………………..……..... (3 – 5) bags 25 kg / min. • Working temperature (surrounding)…….……….….( -10 do + 40 ) 0C • Number of weight sensors…….…………………….….…..1 / 2 items. • Dimensions ( height/length/width ) ………….…..( 2500 / 900 / 2400) • Power supply …………….…..…….….N=3,0 kW, 50 Hz, ~380 VAC
