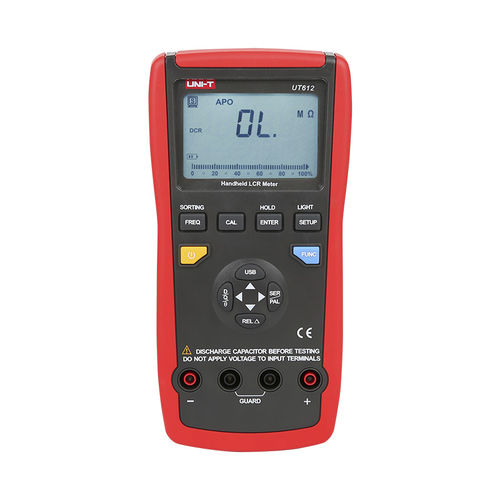

Portable LCR meter UT612

ACDC

UT612 LCR meter is used to measure inductance, capacitance and resistance. Advanced features include series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 selectable frequencies in AC mode. UT612 can be used in production lines, component inspection and electronic maintenance. Features of UT612 LCR Meter Certifications: CE, UKCA ● Auto power off ● Data hold ● Relative mode ● USB interface ● LCD backlight ● Deviation ratio measurement ● Comparison function ● Calibration funtion ● Output impedance: 120Ω ● Auto LCR check and measurement ● Low battery indication: ≤6.8V General Characteristics Power - 9V battery (6F22) or USB Display - 40mm x 63mm Product color - Red and grey Product net weight - 374g Product size - 96mm x 193mm x 47mm Standard accessories - Battery, SMD test clamp, USB interface cable, multi-purpose socket, PC software CD Standard individual packing - Gift box, English manual Standard quantity per carton - 10pcs Standard carton measurement - 370mm x 305mm x 475mm (0.097 CBM per standard carton) Standard carton gross weight - 13.2kg Optional accessory - USB power adaptor
