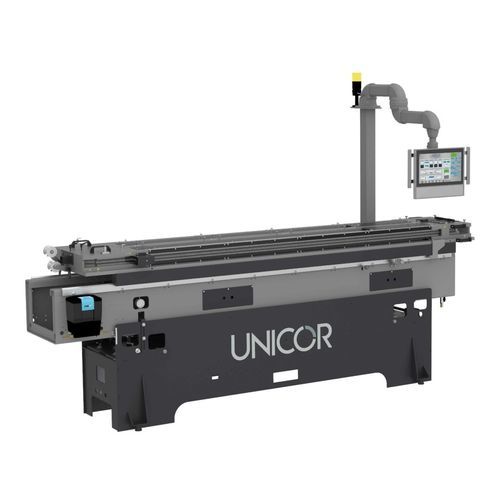

Corrugated pipe production corrugator UC 36

for single-wall corrugated pipesfor extrusion lines

Uniform operating concept The uniform operating concept for small corrugators guarantees an optimal utilisation of the corrugators and the production staff. Extendable middle channel Thanks to the forward-looking machine concept, the cooling capacity can be increased quick and easy. Maximum Outputs – UNICOOL Due to the new mold geometry and optimized cooling, maximum cooling performance is achieved. Highest quality & efficiency Perfected quality of the end product due to precisely manufactured mold blocks and their guidance. Narrow curve radius, short dies, low back pressure and higher throughput provide more efficiency and flexibility, also concerning the choice of material. Vacuum system Each corrugation can be supplied individually with vacuum Free positioning of vacuum holes for mold blocks possible Easy retrofit of an overpressure corrugator to vacuum forming process Maximum efficiency Maximum production speed of 70 m/min Powerful drive system with two synchronised servo motors for almost all applications UNICOOL The unique mold block design increases the effective cooling surface Max. cooling by cooling in the curve section (Outlet) Highly efficient coolant guidance in the medium and return channel of the corrugator Total process control Electronic control of process air Measurement of all vacuum parameters Measurement of water inlet and outlet pressures Electrical control of mold temperature
