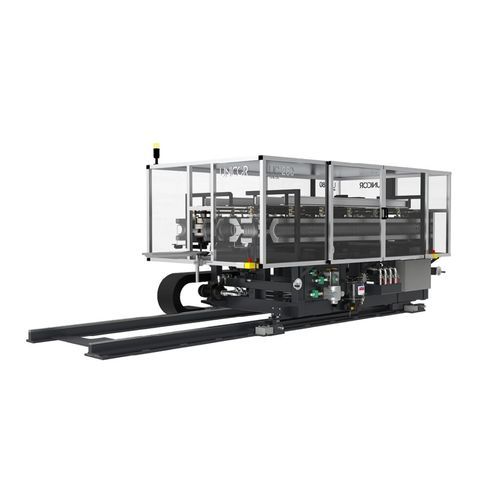

Corrugated pipe production corrugator UC 280

for single-wall corrugated pipesfor extrusion lines

Uniform operating concept The operating concept, which is standardised across all machines (UC 210/ UC 280/UC 5XX/UC 800), offers optimized machine park and employee utilisation. Tool compatibility & quick clamping system Maximum flexibility in the machine park due to compatible mold blocks to the UC 210 and UC 5XX. Furthermore the UNICOR quick-clamping system ensures an easy and fast mold block change (50% reduction compared to UC 315). This leads to an improved machine availability. High energy saving Up to 50% energy saving via variable speed controlled vacuum pump with only 7.5 kW connected load. Highest quality & efficiency Perfect quality of the profile surface and profile shape, thus easier processing and higher stability of the corrugated pipe, even with recycled materials. Short dies, lower back pressure and thus higher throughput offer more efficiency and greater flexibility, also in the selection of materials. Highest flexibility Diameter range 40 i.d. – 280 mm o.d. Production of cable protection-, drainage- and sewage pipes without loss in productivity Compatibility of mold blocks without adapters to the corrugators UC 210 and UC 5XX Maximum efficiency Maximum production speed of 24 m/min Minimal changeover time for mold blocks One drive unit for all applications Extremely low operating costs Speed regulated vacuum pumps Only 20 °C cooling water inlet temperature necessary Total process control Electronic control of process air Registration and recording of all vacuum parameters Registration, recording and electrical control of all water inlet and outlet pressures as well as temperatures
