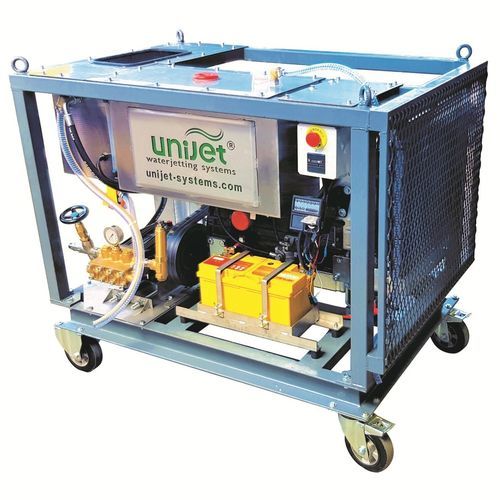

Cold water high-pressure cleaner 500D30

diesel enginemobilewith tank

Technical Characteristics Four-stroke water cooled diesel engine Stainless steel crankshaft drive pump with five ceramic plungers for high efficiency, long service life and low maintenance costs Pump max. water temperature at 45˚C Thermal valve Pressure regulator valve (adjusting pressure from 50 bar up to max. operating pressure) Safety valve (set 10% above operating pressure) for pump protection against overpressure Pump oil level indicator Skid manufactured with galvanized steel robust and wear resistant, fully equipped with lift hooks or fork pockets Fuel tank manufactured from stainless steel 304L 3mm with adequate capacity to keep the engine supported with level switch Water tank manufactured from stainless steel 304L 3mm with adequate capacity to keep the pump supported Powerband belt drive providing high torque carrying capabilities Safety shutdown systems protecting against low oil pressure and high temperature Inlet pressure switch against poor water flow 10-micron inlet water filter for long service life of the pump High pressure gauge for visual pressure monitoring with pressure snubber, absorbing vibration shocks and providing more accurate pressure readings Certification of 45’ machine test run on max. operating pressure Max. operating pressure: 500 bar Max. water flow rate: 30 lpm Engine output power: 51 HP Plunger material: Solid ceramic Pump head material: Stainless Steel Motor speed: 3600 rpm Crankshaft speed: 1450 rpm Weight: 450 Kg Dimensions: 150x200x150 cm
