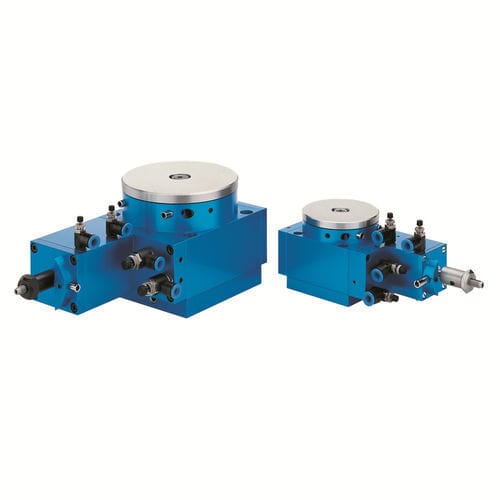

Reciprocating rotary table TPA series

pneumatichorizontalcompact

The assembly tables with reciprocating movement rotate on the horizontal plane. They are used to equip semi-automatic or automatic loading stations. Incorporated fine pitch stop screws made of hardened steel guarantee absolute precision. The shaft is mounted on preloaded ball-bearings. Its reciprocating rotation is pneumatically controlled by a rack and pinion mechanism. A hydraulic shock absorber incorporated into the rack neutralises jarring at the end of the rotation. The rotation speeds are adjusted independently by flow regulators mounted directly on the unit. Features - Rotation on the horizontal plane - 3 positions, with intermediate stop - Pneumatically controlled by a rack and pinion mechanism - Absolute precision - Incorporated fine pitch stop screws made of hardened steel - Hydraulic shock absorber at the end of the rotation - Independently adjustable rotation speeds by flow regulators
