Shock resistant test equipment FreeFall

manualwatchfor watchmaking

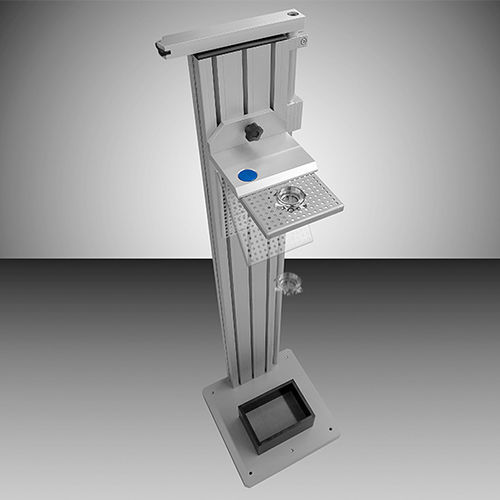

According to ISO1413-standard (currently under validation), this equpment enables to expose watches to free fall in order to test their shock resistance. Watch is placed on a pivoting trap door. A spring system enables to fold up the trap door and to avoid any perturbation during the test. Drop height is adjustable from 200 to 1060 mm. Equipment is assembled on a cast iron base, which guarantees machine stability and shock repeatability. This equipment does not require any electric or pneumatic connection. A manually operated trigger enables the user to run the fall. As an option, a measuring system enables the user to qualify the shocks according to different heights of fall. This measuring system includes an accelerometer, an oscilloscope and an analysis software. Equipement • According to IS01413-standard, this equpment enables to expose watches to free fall in order to test their shock resistance. Connection • This equipment does not need any electric or pneumatic connection. A manually operated trigger enables the user to run the fall. Mechanism • Watches is placed on a pivoting trap door. A spring system enables to fold up the trap door and avoid any perturbation during the test. Stability et repeatability • Equipment is assembled on a cast iron base, which guarantees machine stability and shock repeatability. Measuring system As an option, a measuring system enables the user to qualify the shocks according to different heights of fall. This measuring system includes an accelerometer, an oscilloscope and an analysis software.
