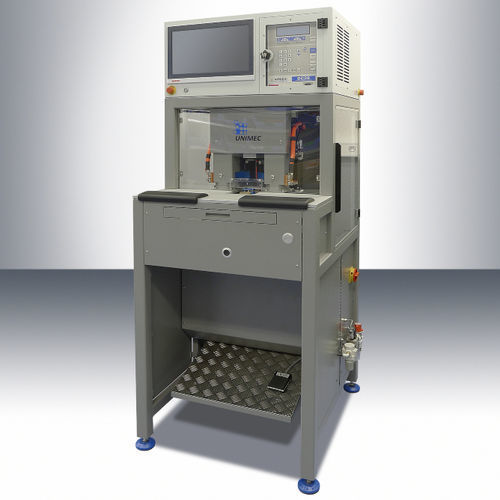

Resistance welding machine

semi-automaticstandalonefor electronic components

This semi-automatic equipment is dedicated to welding of dial feet. Two variants are available: - semi-automatic: foot are supplied automatically; dial is loaded manually - band welding: feet and dial are supplied automatically This machine uses resistance welding technology. A configurable servo press enables the user to optimally control the pressure of feet on the dial. Positioning of feet is made thanks to a motorised cross table, which allows welding on every dial references with high precision. Equipment is run and controlled via a HMI especially developed for this application. Welding profile is fully programmable: time, limit, double pulse, pressure force. A device enables to disable the automatic supply of foot. This way it is possible to load them manually in order to make welding on prototypes or small-volume production. Equipement • This semi-automatic equipment is dedicated to welding of dial feet. • Two variants are available: - semi-automatic: feet are supplied automatically; dial is loaded manually - band welding: feet and dial are supplied automatically Functioning • This machine uses resistance welding technology. • A configurable servo-press enables the user to optimally control the pressure of feet on dial. Programming Equipment is run and controlled via a HMI especially developed for this application. • Welding profile is fully programmable: time, limit, double pulse, pressure force. Voltage measure • Voltage measure during welding enables to detect welding defects and to prevent electrode damages or flashs.
