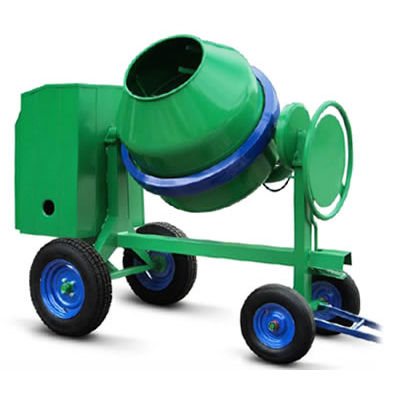

Electric concrete mixer FG3VS 360dieselgasolinemobile
Add to favorites
Compare this product
Characteristics
- Motor type
- electric, diesel, gasoline
- Mobility
- mobile
- Other characteristics
- reversing drum
- Capacity
310 l, 360 l
(81.9 gal, 95.1 gal)
Description
FG3VS 360
PROFESSIONAL TILTING MIXER WITH ROTATIONS CROWN AND BIG REINFORCED CABIN AND 4 PNEUMATIC WHEELS
Technical featuresU.M.FG3VS-360
Drum capacitylt.360
Mix capacitylt310
Electric mono phase motorHP(Kw)1,5 (1,1)
Electric three phases motorHP(Kw)1,5 (1,1)
Diesel motorHP(Kw)5,0 (3,7)
Gasoline motorHP(Kw)6,0 (4,5)
Noise emission leveldb(A)<80
Overall dimensions LxLxHcm210x110x160
Machine weightkg265
WHELLS WITH BUS
Fit up with the standard version
BIG CABIN WITH HORIZONTAL OPENING
Consent to be adapted at the majority of diesel and gasoline motor and permit
an easy reparation of the moto
ADJUSTABLE TRANSMISSION SYSTEM
Composed by a fused pinion at 180 Brinnell resistances. Crown teeth
positioned in the inferior part make the mixer extremely silenced
EASY TILTING
It is assured from 610 diameter stee-ring wheels and from the fused
height resistance gears reduction. The tilting system with iron support
and big dimensions tilting crown reduce at minimum the user effort
