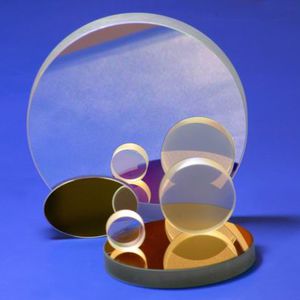

Concave array mirror MCM seriesBK7with metal layer
Add to favorites
Compare this product
Characteristics
- Shape
- concave array
- Material
- BK7
- Options and accessories
- with metal layer
Description
Mirror is used to reflect or deflect propagation of light. Union Optic offer many types of mirrors, include Dielectric Laser Line Mirror, Dielectric Dual Laser Line Mirror, Broadband Dielectric Mirror, Metal Coated Flat Mirror, Metal Coated Concave Mirror, Dichroic Mirror, Right Angle Prism Mirror, Nd:YAG Laser Harmonic Separator, Output Coupler, Rear Mirror and etc.
Specifications:
Material BK7
Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Clear Aperture >90%
Flatness λ/4@632.8nm per 25mm range
Centration 90%@400-700nm
Protected Aluminum: Ravg>87%@400-1200nm
Protected Silver: Ravg>95%@400-12000nm
Protected Gold: Ravg>98%@2000-12000nm
Damage Threshold >1J/cm2, 20ns, 20Hz, @1064nm
