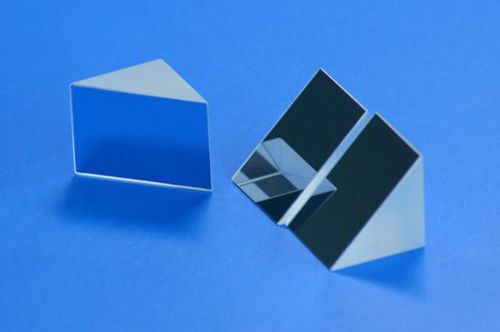

Prismatic mirror RAM seriesright-angleBK7external reflectance
Add to favorites
Compare this product
Characteristics
- Shape
- prismatic, right-angle
- Material
- BK7
- Options and accessories
- external reflectance
Description
Ideal for Alignment
Front Surface Mirror, Reflects Light at 90°
Metal Coating and Dielectric Coating Available
Specifications:
Material BK7
Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Clear Aperture >90%
Flatness λ/4@632.8nm per 25mm range
Surface Quality 60/40 scratch and dig
Coating Metal HR coating on hypotenuse, two legs inspection polished
Damage Threshold >1J/cm2, 20ns, 20Hz, @1064nm
