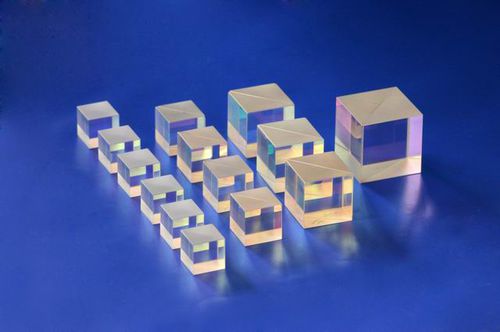

Cubic beam splitter PBS series

polarizing

Beamsplitter is used to divide energy of beam into different portions. Union Optic offer many types of beamsplitters, include Beamsplitter Plate, Nd:YAG Laser Beamsplitter Plate, Ultra Thin Beamsplitter Plate, Non-Polarizing Beamsplitter Plate, Beamsplitter Cube, Non-Polarizing Beamsplitter Cube, Polarization Beamsplitter Cube, Lateral Displacement Beamsplitter and etc. Widely used in most application Good Extinction Ratio RoHS Compliant Specifications: Material BK7, SF glass Dimension Tolerance ±0.2mm Extinction Ratio >100:1 for broadband, >500:1 for narrow band Surface Quality 60/40 scratch and dig Clear Aperture >90% Beam Deviation 95% and Ts90% and Ts99% and Rp99% and Rp<10% Coating Polarization beamsplitter coating on hypotenuse face AR coating on all input and output faces
