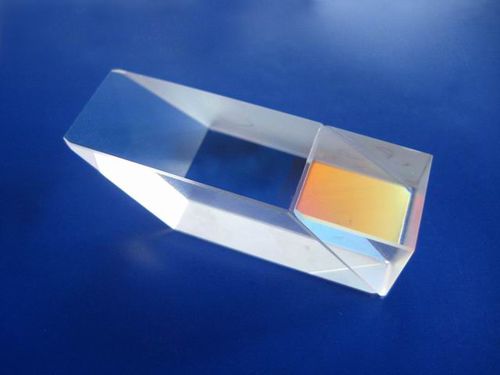

Optical beam splitter LDB series

lateral displacement

Beamsplitter is used to divide energy of beam into different portions. Union Optic offer many types of beamsplitters, include Beamsplitter Plate, Nd:YAG Laser Beamsplitter Plate, Ultra Thin Beamsplitter Plate, Non-Polarizing Beamsplitter Plate, Beamsplitter Cube, Non-Polarizing Beamsplitter Cube, Polarization Beamsplitter Cube, Lateral Displacement Beamsplitter and etc. Specifications: Material BK7 Grade Aoptical glass Dimension Tolerance ±0.2mm Clear Aperture >90% Flatness λ/4@632.8nm Beam Deviation <3 arc minutes Surface Quality 60/40 Coating Partial reflectance on cemented surfaces AR coating on all entrances T/R 50/50±5%, T=(Ts+Tp)/2, R=(Rs+Rp)/2
