Optical wedge prism WED series

fused silicaBK7

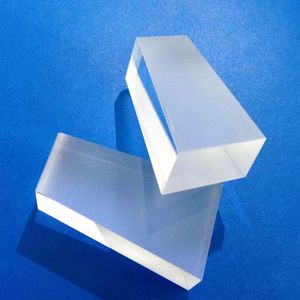

Wedge prism has plane inclined surfaces. It deflects light toward its thicker portion. It can be used individually to deflect a beam to a special angle. Two wedge prisms work together can assembly an anamorphic prism to correct the elliptical shape of laser beam. The wedge prism is ideal for laser beam steering applications. By combining two wedge prisms which can be rotate individually, we can direct the input beam to anywhere within the cone angle θd, where θd is 4x the specified angular deviation of one wedge. We can make deviation angle from 1deg to 10deg. Other angle can be realized upon request. Specifications: Material BK7 or UV Fused Silica Design Wavelength BK7: 632.8nm, n=1.515@632.8nm UVFS: 355nm, n=1.476@355nm Dimension Tolerance +0.0/-0.2mm Thickness 3mm on the thinnest edge Wedge Angle Tolerance <3 arc minutes Flatness 90% Deviation Angle From 1deg to 10deg Coating None, Available
