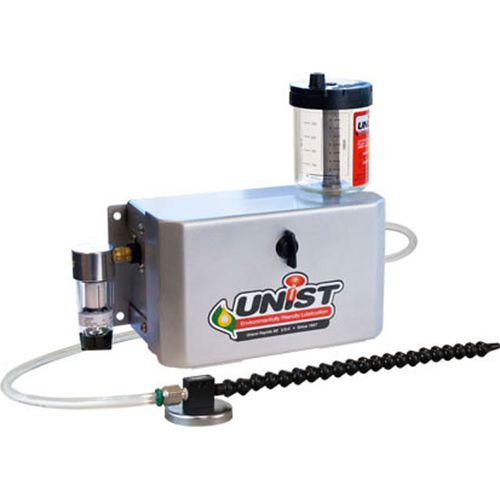

Oil lubrication unit Serv-O-Spray™

minimal quantitysprayfor drilling machines

Serv-O-Spray™ features MQL performance for operations where only a precise intermittent pulse or shot of lubrication is required. Perfect for drilling and tapping small holes, punching, and more. Delivers precise, repeatable single shots of lubricant With its precision positive displacement pump and individually adjustable air and fluid volumes, the Serv-O-Spray™ spray lubrication system is the perfect Minimum Quantity Lubrication solution for any operation where controlled, intermittent fluid application is needed. Single-shot precision output Reliable Unist pump Separate air/fluid control Ideal MQL solution - for short-cycle machining Serv-O-Spray™ 1 signal = 1 shot of lubricant eliver a fixed amount of fluid with each and every shot Adjustable pumps deliver 0.003 - 0.100 mL per stroke. Pumps are air actuated Easy adjustability and control over spray consistency. Neat, clean fluid delivery - Eliminate the mess of flood coolants Improves cut quality Made for environmentally friendly Coolube® Dry chips - higher recycling value How it works: The Serv-O-Spray™ pump is ready to dispense a shot of fluid. Note: The system is full of fluid (green) all the way to the nozzle tip When an air signal (blue) is applied, the pump piston strokes, immediately pushing a fixed quantity of fluid out the nozzle tip. Simultaneously, an adjustable amount of air surrounds the fluid to break it up and propel it to the point of application. Intermittent output Actuating your Serv-O-Spray™ spray lubrication system is easy.
