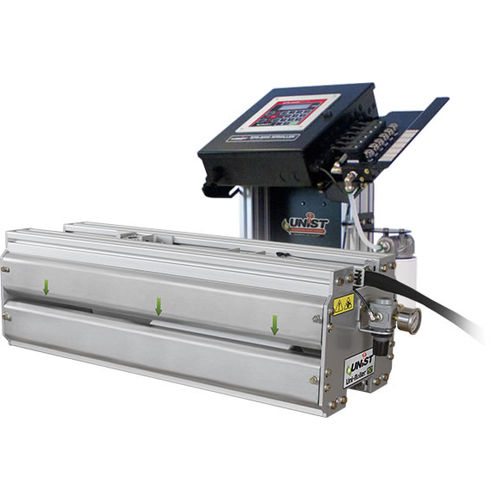

Oil lubrication unit Uni-Roller® S2

rollercontinuousdrawing

The Uni-Roller® S2 supplies precision lubrication for top and bottom of coil stock at line speeds up to 500 ft/min (152 m/min). Ideal for stamping, roll forming, fine blanking, deep drawing and punching. Continuous stock lubrication The Uni-Roller® S2 lubricator is the ultimate solution for continuous stock lubrication. Combined with an SPR-2000™ or SPR-2000 JR™ programmable fluid controller, the Uni-Roller® S2 will consistently apply the correct amount of fluid to both the top and bottom of your coil, day after day. Reduce lubricant consumption by 50% or more Cleaner floors & work area Quick-change rollers for easy maintenance Uni-Roller® S2 applications: Punching Stamping Roll forming Fine blanking Deep drawing Application of rust preventives and other protective coatings The internally-supplied difference The internally-supplied rollers are essential to precisely applying the fluid. Inside each of the rollers is a dispenser tube with small holes placed along its length. Fluid is injected into the dispenser tubes from the fluid controller and dispensed across the inside of the rollers. internally fed The lubricant is transferred to the stock through durable polyester felt or polyurethane foam roller covers. These cover materials apply the lubricant smoothly and evenly across both the top and bottom of the stock. The Uni-Roller® S2 applies the exact amount of lubricant required. This eliminates the mess and waste associated with in-die spray systems and externally lubricated roller systems. The result is not only a cleaner shop, but also significant savings from decreased fluid waste, improved die life, better part quality and increased machine up-time.
