Hydraulic fitting

pneumaticquickstainless steel

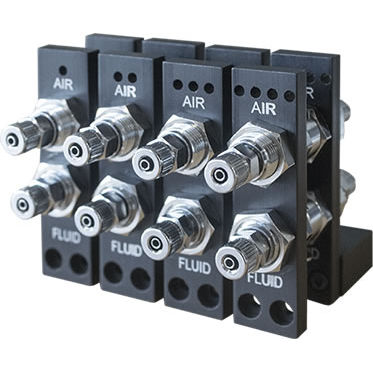

The In-Die Quick Connect allows Unist spray nozzles to be permanently mounted, ensuring they remain in position with each die change. The In-Die Quick Connect allows Unist spray nozzles to be permanently mounted, ensuring they remain in position with each die change. With the nozzles consistently in position, you get more reliable performance whenever you use the die. With the In-Die Quick Connect, disconnecting the lubrication lines is done with just a touch, and reattachment is a snap. Each quick connect is keyed to assure operators reattach the lines correctly, guaranteeing each nozzle sprays as programmed. The In-Die Quick Connect utilizes integral check valves to prevent dripping and works with both Unist’s Low Volume (LV) and Airless Spray Nozzles. This is an ideal solution when die-mounted nozzles are necessary. Quickly connect and disconnect lubrication lines when changing dies Reduce die setup time Maintain proper nozzle placement in each die Dripless design helps maintain a cleaner work area For Low Volume Spray Nozzles (LV), series 4210, order both die half and controller half sections. Calculate the number of die half sections based on the total number of nozzles in use and multiply by the number of dies to be outfitted. For example, if (2) LV Nozzles are used and there are (4) dies, then order (4) each 303086-2. For the mating controller half sections, order (1) each 303085-2. Note each half is keyed and marked with 1, 2, 3 or 4 holes on the upper face to identify the mating sections and provide proper orientation for connection.
