Electric power regulator PSR series

AChigh-power

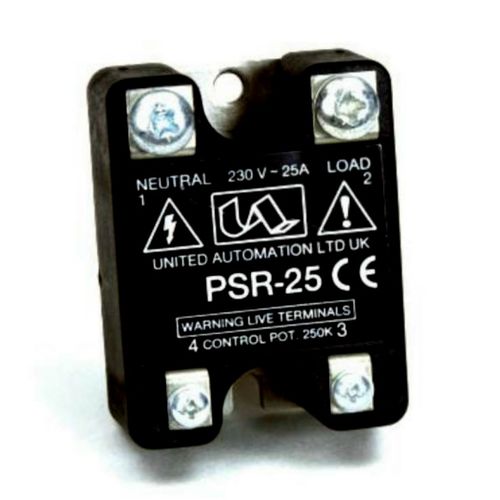

The PSR-25 power control module is a high-power, full-wave AC phase-angle controller in a compact package. It is capable of regulating up to 6kW (25A) 230V AC. The PSR-25 regulator governs the amount of power supplied to the load, by controlling the phase-angle of the ac supply. The low thermal impedance and high electrical isolation provide the equipment designer with a greater flexibility in a wide variety of applications. Optional extras are available on request, including a plastic terminal cover and an additional heatsink for use at full power. APPLICATIONS Suitable for quartz lamps, conventional resistive heating elements, ovens, moulders and dryers and some inductive loads (e.g. transformers and motors). FEATURES · Simple wiring. · Rugged and compact. · 25A current capability. · Internal snubber.
