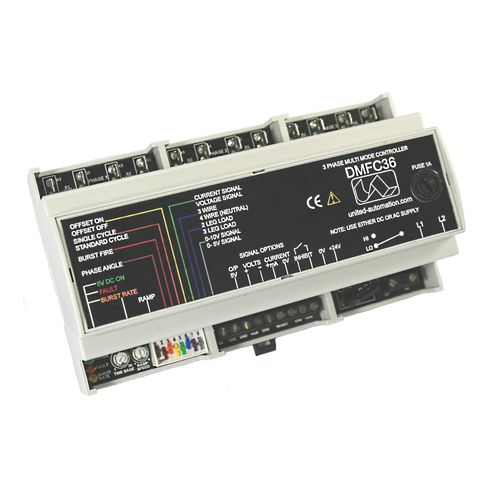

Thyristors power controller DMFC36

burstphaseDIN rail

The DMFC36 driver modules have been designed to offer phase angle control, burst fire control or Single-Cycle/Dual-Cycle firing of thyristor controllers driving resistive loads or inductive loads. In Single-Cycle or Dual-Cycle mode, these modules use the fastest burst rates possible, providing very accurate control and mininising Harmonic distortion & Flicker within the system. In addition the standard variable burst rate, adjustable from 1 to 30 seconds, is also available. The DMFC36 software also includes auto phase rotation. Designed to be used in conjunction with a thyristor assembly or supplied on one of our complete thyristor controllers, the DMFC36 offer a highly versatile and cost effective solution in a wide variety of applications. The DMFC36 is commonly used in a 3-Wire, 3-Phase, Floating Star Load configuration (3-Leg control) or a 3-Wire, 3-Phase, Closed Delta load configuration (3-Leg control) or a 4-Wire, 3-Phase Star Point to Neutral load configuration (3-Leg control), where all three of the phases are switched. For ease of mounting & for protection purposes, the controller comes in a DIN Rail Enclosure. Features Standard DIN Rail Mounting Selectable Phase Angle, Burst Fire or Single-Cycle/Dual-Cycle or adjustable Std Burst Firing On Board Indication of Power, Burst-Rates & Fault conditions Inhibit input Wide Range of Control Options (0-5V, 0-10V, 1-5V, 2-10V, 0-20mA, 4-20mA, Manual Potentiometer) On board protection fuse Isolated Pulse Transformer outputs
